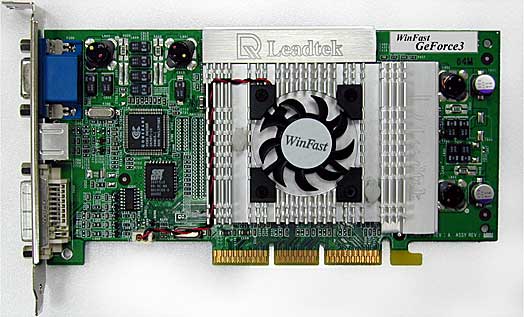

Leadtekの新グラフィックスカードのスペックが届きましたので、至急報告しましょう。

3D engine Features

nfiniteFXTM engine for full programmability
Lightspeed Memory Architecture for unmatched performance
Surface engine for high-order surfaces and patches
Programmable Vertex Shader
Procedural deformations
Programmable matrix palette skinning
Keyframe animation interpolation
Morphing
Fog effects
　　- Radial
　　- Elevation
　　- Non-linear
Lens effects
　　- Fish eye
　　- Wide angle
　　- Fresnel effects
　　- Water refraction
Programmable Pixel Shader
Phong-style lighting for per-pixel accuracy
Dot3 bump mapping
Environmental bump mapping (EMBM)

Procedural textures
Per-pixel reflections
HRAAXhigh-resolution antialiasing
Featuring Quincunx AA mode
Integrated hardware transform engine
Integrated hardware lighting engine
DirectX R and S3TC R texture compression
Dual cube environment mapping capability
Reflection maps
Accurate, real-time environment reflections
Hardware accelerated real-time shadows

True, reflective bump mapping
Z-correct bump mapping
Phong-style lighting effects on bump maps with reflections
High-performance 2D rendering engine
Optimized for 32-, 24-, 16-, 15- and 8-bpp modes
True-color hardware cursor with alpha
Multi-buffering (double, triple or quad) for smooth
animation and videoplayback
High-quality HDTV/DVD playback
High-definition video processor (HDVP) for full-screen, full-frame video
playback of HDTV and DVD content
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
Motion compensation
　　5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Per-pixel color keying
Multiple video windows supported for CSC and filtering
DVD sub-picture alpha-blended compositing

Windows2000
Windows NT (all)
Windows 98, Windows 95
Linux
Mac OS

OpenGL 1.2 and lower
DirectX 8.0 Version 1.1 and lower

3.2 billion AA samples per second fill rate
7.36GB/sec memory bandwidth
Lightspeed Memory Architecture amplifies memory bandwidth

NVIDIA Unified Driver Architecture
Fully-compliant professional OpenGL 1.2 support for all Linux ? and
Windows operating systems
WHQL-certified for Windows 2000, Windows NT, and Windows 98
Complete Linux drivers
